KUZEAL PRODUCT RANGE
Bi-Metallic Wear Resistant Plates

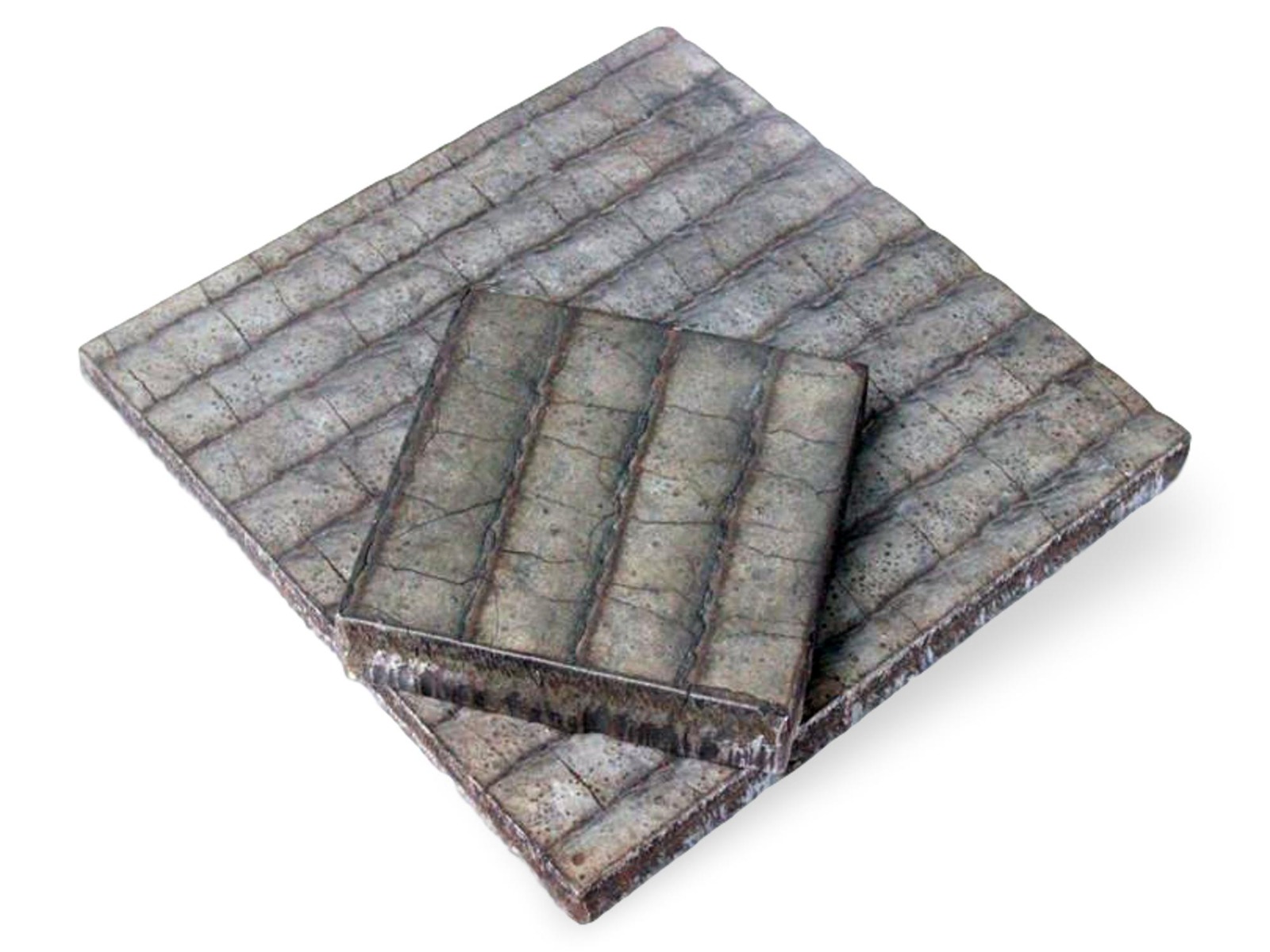

KUZEAL WP 55
Alloy Base: Carbon, Chromium, Manganese
Description: A wear-resistant composite hard-facing plate for high abrasion and moderate impact resistance.
| Property | Details |
|---|---|
| Hardness | 56-58 HRC |
| Abrasion | High |
| Impact | Moderate |
| Erosion | Low |
| Temperature Resistance | - |
Applications: Blow Bars, Bucket Walls, Grizzly Bars.
KUZEAL WP 60
Alloy Base: C, Cr, Mn, Nb
Description: A wear-resistant composite hard-facing plate for high abrasion, moderate impact, and temperature resistance up to 500°C.
| Property | Details |
|---|---|
| Hardness | 60-62 HRC |
| Abrasion | High |
| Impact | Moderate |
| Erosion | Low |
| Temperature Resistance | Up to 500°C |
Applications: Chutes for mines, Crushers, and high-temperature applications in coal and cement industries.
KUZEAL WP 63
Alloy Base: Carbon, Chromium, Manganese, Boron
Description: A wear-resistant composite hard-facing plate with high abrasion, moderate impact, and temperature resistance up to 500°C.
| Property | Details |
|---|---|
| Hardness | 61-63 HRC |
| Abrasion | High |
| Impact | Moderate |
| Erosion | Moderate |
| Temperature Resistance | Up to 500°C |
Applications: Pipes for Cement, Dust & Ash handling equipment, Hopper liners, Fan blades, Feed pipes, Screw conveyors.
KUZEAL WP 65
Alloy Base: C, Cr, Mn, Nb, Mo, W, V
Description: A wear-resistant composite hard-facing plate developed for extreme abrasion, moderate impact, and temperature resistance up to 700°C.
| Property | Details |
|---|---|
| Hardness | 62-65 HRC |
| Abrasion | Excellent |
| Impact | Moderate |
| Scratching | Moderate |
| Temperature Resistance | Up to 700°C |
Applications: ID Fans, Hot screens, Hot gas exhaust, Bell and hoppers, Dust exhaust, Blast furnace hoppers.
Size Selection (mm)
| Base | Overlay | Total |
|---|---|---|
| 05 | 03 | 08 |
| 06 | 04 | 10 |
| 08 | 04 / 06 | 12 / 14 |
| 10 | 04 / 06 / 08 | 14 / 16 / 18 |
| 12 | 04 / 06 / 08 | 16 / 18 / 20 |
| 14 | 04 / 06 / 08 | 18 / 20 / 22 |
| 16 | 04 / 06 / 08 | 20 / 22 / 24 |
Minimum Bending Dia (mm)
| Thickness | Inside | Outside |
|---|---|---|
| 5 + 3 | 600 | 1200 |
| 5 + 4 | 400 | 1000 |
| 6 + 6 | 500 | 1200 |
| 8 + 3 / 4 | 200 | 800 |
| 6 + 4 / 6 | 400 | 1200 |
| 10 / 12 + 3 / 4 | 400 | 1200 |
| 10 / 12 + 5 / 6 | 600 | 1500 |
